Power system control panels

Acrastyle specialises in providing power system control panels (commonly called ‘mimic control panels’) and cubicles for all levels of electrical power transmission, distribution and generation.

What to expect

Control panels and cubicles generally have:

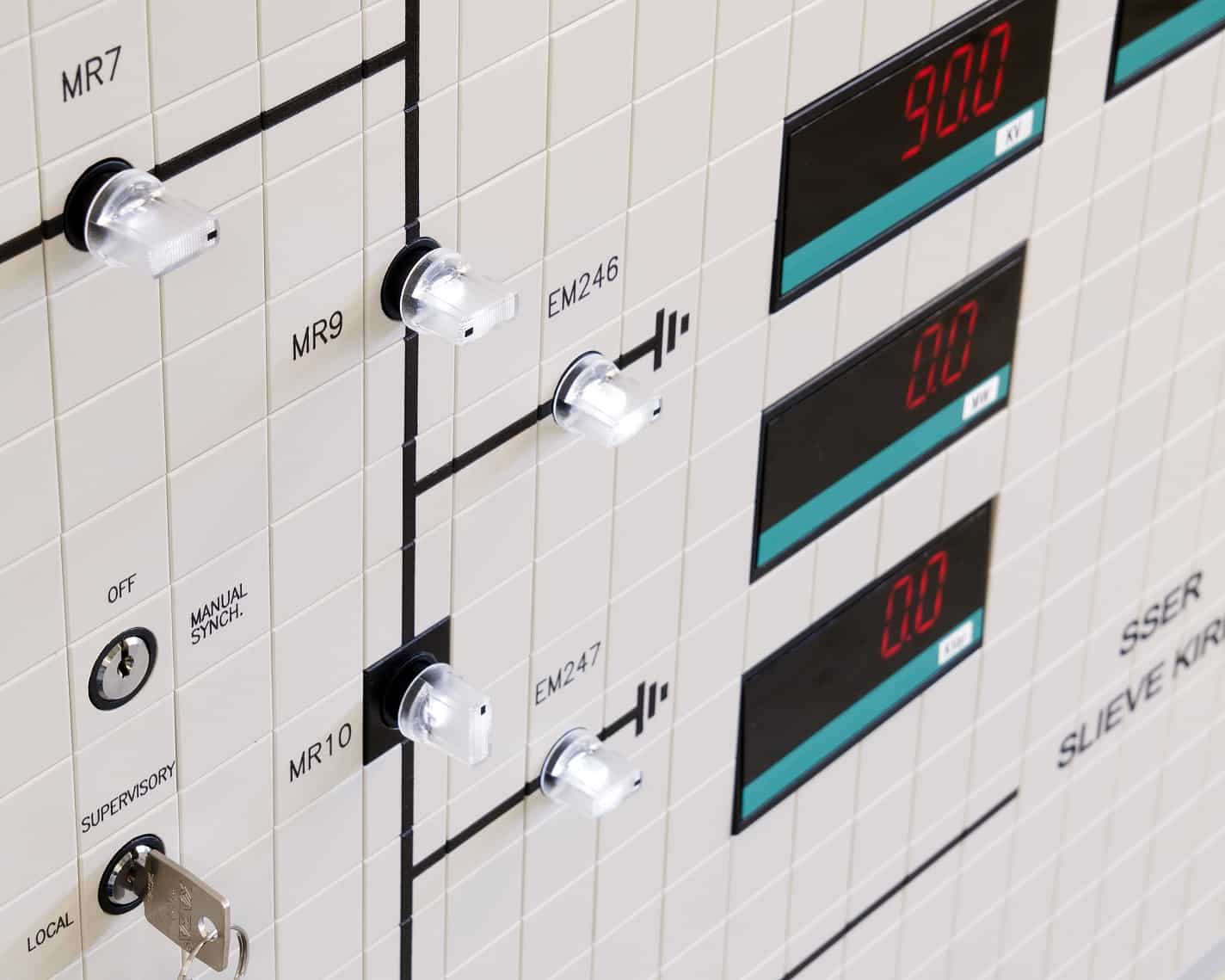

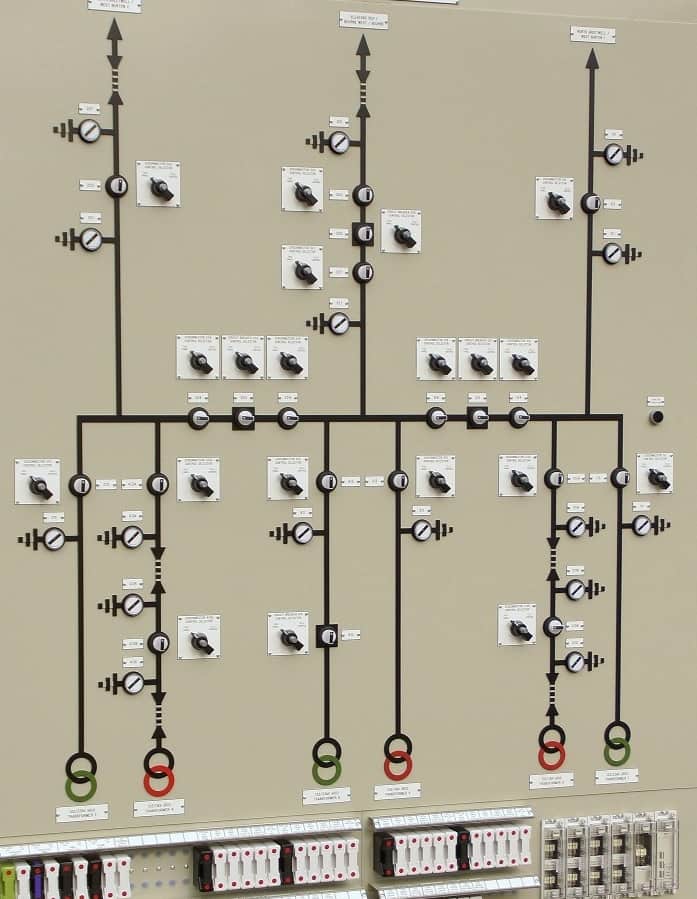

  • A schematic mimic on the front representing the system being controlled
  • Lamps and indicators to show the status and position of all the elements
  • Switches to control and change the status of these plant items
  • Alarm annunciators and fault recording equipment
  • Full internal wiring, and equipment mounted on the front and internally.

Replacement front sheet panels have fully wired inter-device wiring, and flying leads wired to a terminal rail enabling easy external connection between old and new systems.


Bespoke custom design

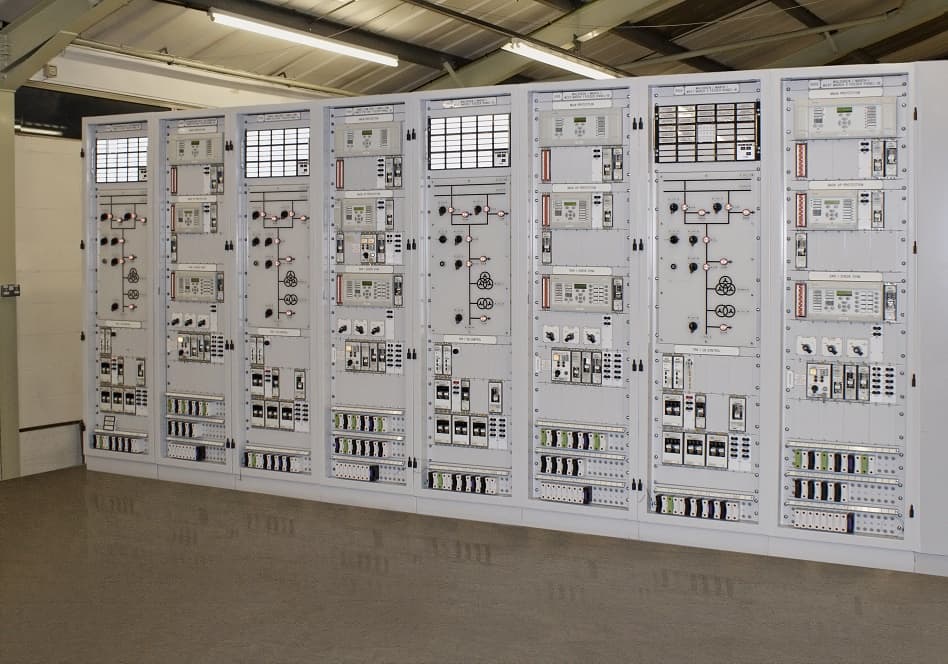

Acrastyle can provide standard 19” rack type control panels or custom-sized panels tailored to individual demands. Cubicles can be rear access or front access swing frame with or without front doors.

The Acrastyle Difference

Quick and easy installation

An Acrastyle control panel or cubicle allows the customer to quickly and easily install new, or replace existing, control equipment with the following benefits:

  • Fast commissioning on the new controls and mimic since the scheme has been fully factory tested out to the terminal rails
  • Minimum outage time and site-work cost
  • No disturbance to adjacent cubicles other than the reconnection of bus-wiring between cubicles
  • Acrastyle can design and provide ‘red, green and black‘ drawings if required, where the control equipment is either retrofit or part of a phased new installation.


Get in touch today

Please contact Acrastyle to have all your requirements fully met for:

  • 19” rack-based protection and control cubicles and panels
  • Solid front protection and control cubicles and panels
  • Swing frame front access protection and control cubicles and panels
  • Wall mounted protection and control boxes
  • Mosaic mimic control boards
  • Perspex mimic control boards.
